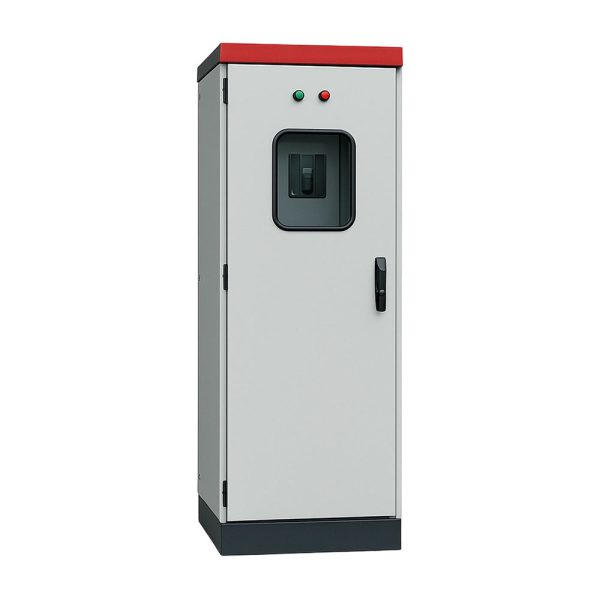

custom low voltage power distribution cabinet GGD fixed type switchgear PLC control panel automatic VFD intelligent distribution board for home and commercial use wholesale Middle East Africa
$324.94
Our fixed-type LV switchgear is built to IEC 61439 standards with a proven GGD-type structure: rigid frame, clear circuit segregation and full front maintenance access. Rated current options up to 4000A, equipped with MCCB/ACB protection, suitable for main distribution in industrial plants, commercial buildings and substations.
Custom PLC control panels integrate programmable controllers, HMI touchscreens and SCADA communication for process automation, water treatment, manufacturing lines and pump stations. Every panel is designed, wired, programmed and factory-tested before shipment — delivered ready for commissioning.
Variable frequency drive cabinets deliver precise motor speed control with energy savings of 20-40% on pump and fan loads. Intelligent features include constant-pressure water supply logic, automatic changeover, remote monitoring via GPRS/WiFi and full motor protection. Widely used for borehole pumps, HVAC systems, mining conveyors and industrial fans.
IP54/IP65 enclosures resist dust, humidity and coastal corrosion. High-ambient designs operate reliably at 50°C — essential for Gulf summers and desert mining sites. Optional anti-condensation heaters for humid coastal areas.
- IEC 61439 compliant design, fixed-type and withdrawable structures
- Rated current up to 4000A, short-circuit withstand up to 100kA
- Custom single-line diagram design; OEM/ODM and CKD/SKD kit options
- PLC + HMI + SCADA integration, remote monitoring ready
- IP54/IP65 protection, 50°C high-ambient operation
- SASO/SABER, SONCAP, PVOC clearance documentation available
- Factory acceptance test (FAT) reports and full documentation in English/French/Arabic
Factories, commercial buildings, hospitals, hotels, water pump stations, agricultural irrigation, mining, telecom shelters and solar power systems across the Middle East and Africa.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| material | steel, cold-rolled stee, galvanized steel, formulate |
|---|---|
| dimension | 600mm*800mm*2200mm Split type |
| Voltage | 380 V, 450 V, 690 V |
| Current | 160 amps, 400 amps, 500 amps |
Description

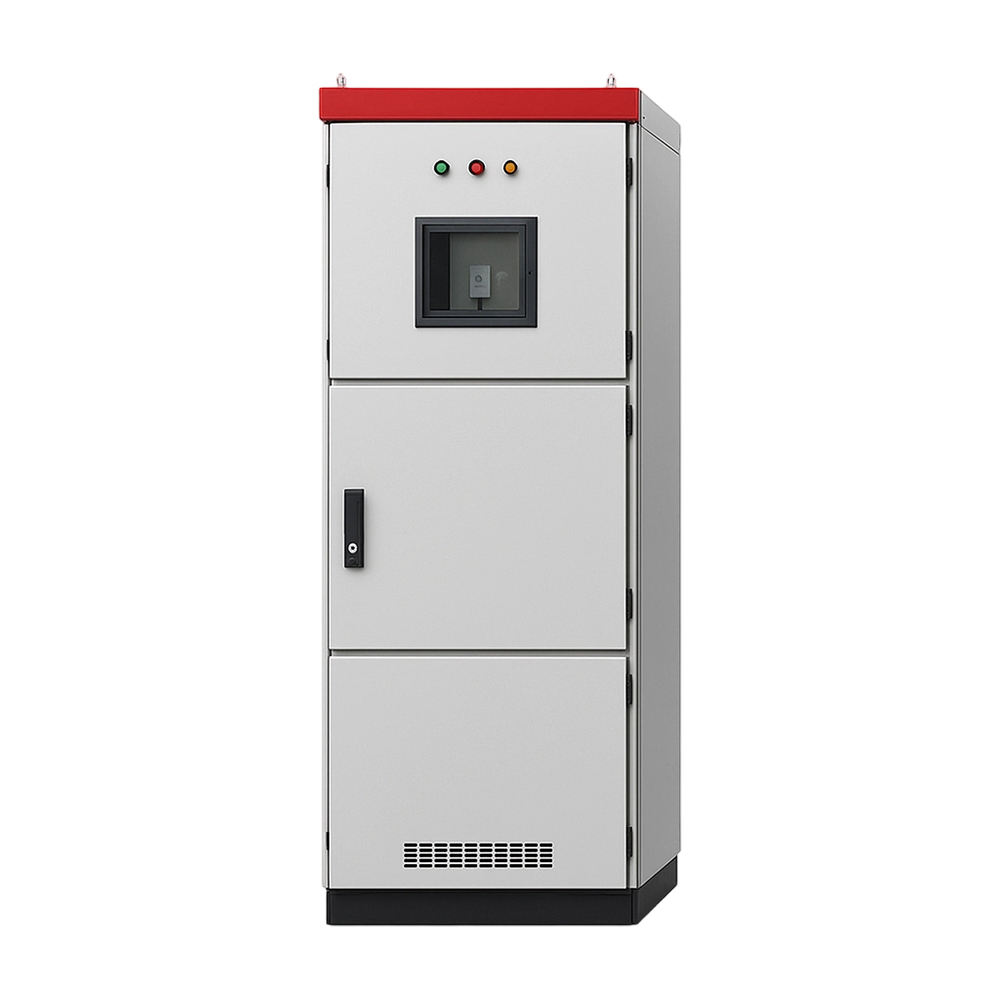

Our solar distribution cabinet is a floor-standing electrical combiner and protection cabinet designed for solar PV arrays and energy storage systems. It safely combines DC strings from solar panels, provides overcurrent and surge protection, and distributes power to inverters or battery systems in industrial and commercial installations.
### Why Use a Solar Distribution Cabinet
A solar distribution cabinet protects the whole PV system by centralizing DC inputs, fusing each string independently, and providing surge arresters against lightning and voltage spikes. Instead of running many individual wires from panels to inverter, all strings combine inside one enclosed cabinet. This improves safety, simplifies troubleshooting and reduces cable cost.

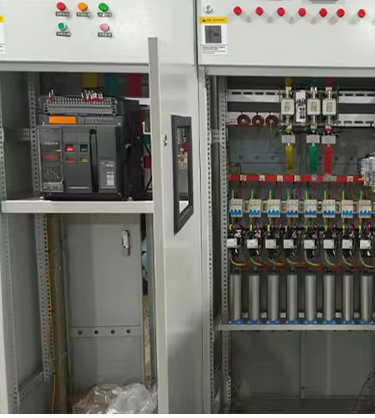

The cabinet door has a viewing window so installers can check internal breakers and meters without opening the door. Indicator lights show power status at a glance. Heavy-duty steel construction with powder coating withstands industrial environments. Custom configurations include additional MCBs, surge protection, DC meters, monitoring modules and pre-wired terminals.
Rated Voltage: 380 V, 450 V, 690 V
Rated Current: 160 A, 400 A, 500 A
Applications: Industrial, Indoor, Power Transmission, Outdoor
IP Rating: IP30; IP40
Type: Low-voltage switchgear
Number of Sockets: 24
Lock Type: Certified lock
Product Name: Distribution cabinet
Applications: Power transmission
Rated Current: 1-5000A
Rated Insulation Voltage: 1 kV
Rated Short-Circuit Withstand Current: 50 kA
Rated Impulse Withstand Voltage: 15 kV
Protection Class: IP30; IP40
Warranty: 1 year
Color/Logo: Customizable
Sales Unit: Single item
